Gliderol Swift High Speed Traffic Door

The Gliderol Swift high-speed traffic door is a vertical high speed traffic door that is a more cost-effective alternative to the Butzbach NOVOSPRINT high-speed traffic door. Its opening speed is 900 mm per second.

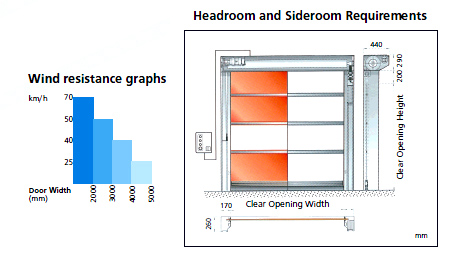

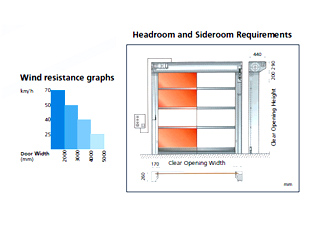

Gliderol Swift High Speed Traffic Door - Counterbalanced

Technical Data

Maximum Opening Size W 5.0 x Ht 5.0m
Standard Power Supply 3 phase 400V 50Hz
Power Input 3 Amp
Auxillary Control Voltage 24V DC
Motor rating 0.9 kW
Control Box Protection Class IP 55
Opening Speed 0.9 m/sec
Closing Speed 0.9 m/sec
Operate to OPEN by Push Button on Control box
Operate to CLOSE by Adjustable Timer or Push button
Curtain Material 0.6mm thk Polyester
Self-extinguishing Class Class 2
Transparent Vision Panel Material 2.0mm thk PVC
Self-extinguishing grade DIN 4102
Counterbalance system modular counterweights
Auto-reverse Safety edge Pneumatic Type
Safety Photocell Single Path Type
Tensioning System gravitational
Operating Temperature Between -5 to +50 deg C

Optional Accessories Additional Release Handle
Radar (Motion Detectors)
Magnetic Loop Detector
Radio Receiver & Transmitters
Traffic or Flashing Lights

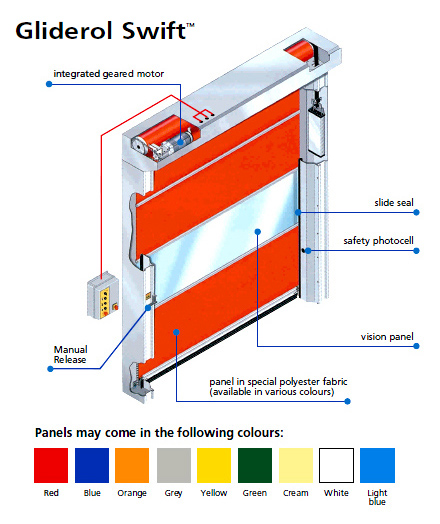

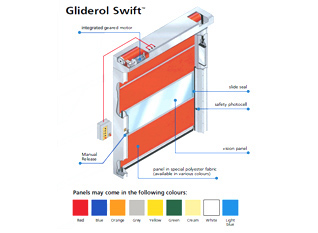

Gliderol Swift™

Fast-acting roll-up doors are commonly used for entrances in temperaturecontrolledpremises and clean rooms to facilitate the passage of materials. Themain function of these doors is to close the openings as quickly as possible. Asthese doors are usually subject to frequent operations, the maintenance costhas to be an important factor of consideration. Gliderol Swift™ is not onlyaffordable. Its modular design makes parts replacement simple. It is an efficientand cost-effective solution, with all the features that you will probably need.

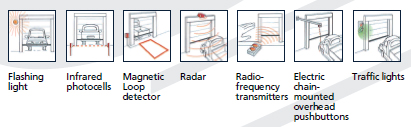

Control and safety systems

Gliderol Swift

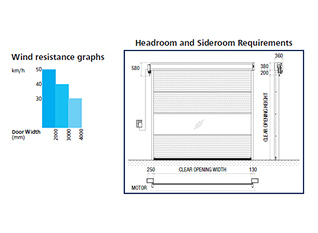

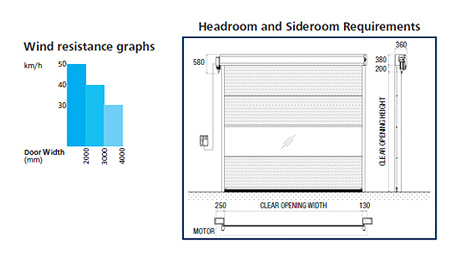

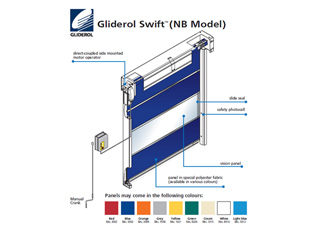

Gliderol Swift High Speed Traffic Door - Non-counterbalanced

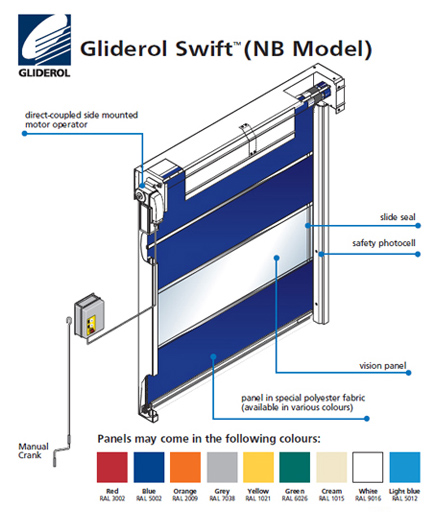

Gliderol Swift™ (NB Model)

Technical Data

Maximum Opening Size W 4.0 x Ht 4.5m
Standard Power Supply 3 phase 400V 50Hz
Power Input 2 Amp
Auxillary Control Voltage 24V DC
Motor rating 0.6 kW
Control Box Protection Class IP 54
Opening Speed 0.8 m/sec
Closing Speed 0.8 m/sec
Operate to OPEN by Push Button on Control box
Operate to CLOSE by Adjustable Timer or Push button
Curtain Material 0.6mm thk Polyester
Self-extinguishing Class Class 2
Transparent Vision Panel Material 2.0mm thk PVC
Self-extinguishing grade DIN 4102
Counterbalance system None
Auto-reverse Safety edge Electric Type
Safety Photocell Single Path Type
Manual Opening By hand crank
Operating Temperature Between -5 to +50 deg C

Optional Accessories Additional release handle
Radar (Motion Detectors)
Optional Accessories     Magnetic Loop Detector
Radio Receiver & Transmitters
Traffic or Flashing Lights
